Product Features

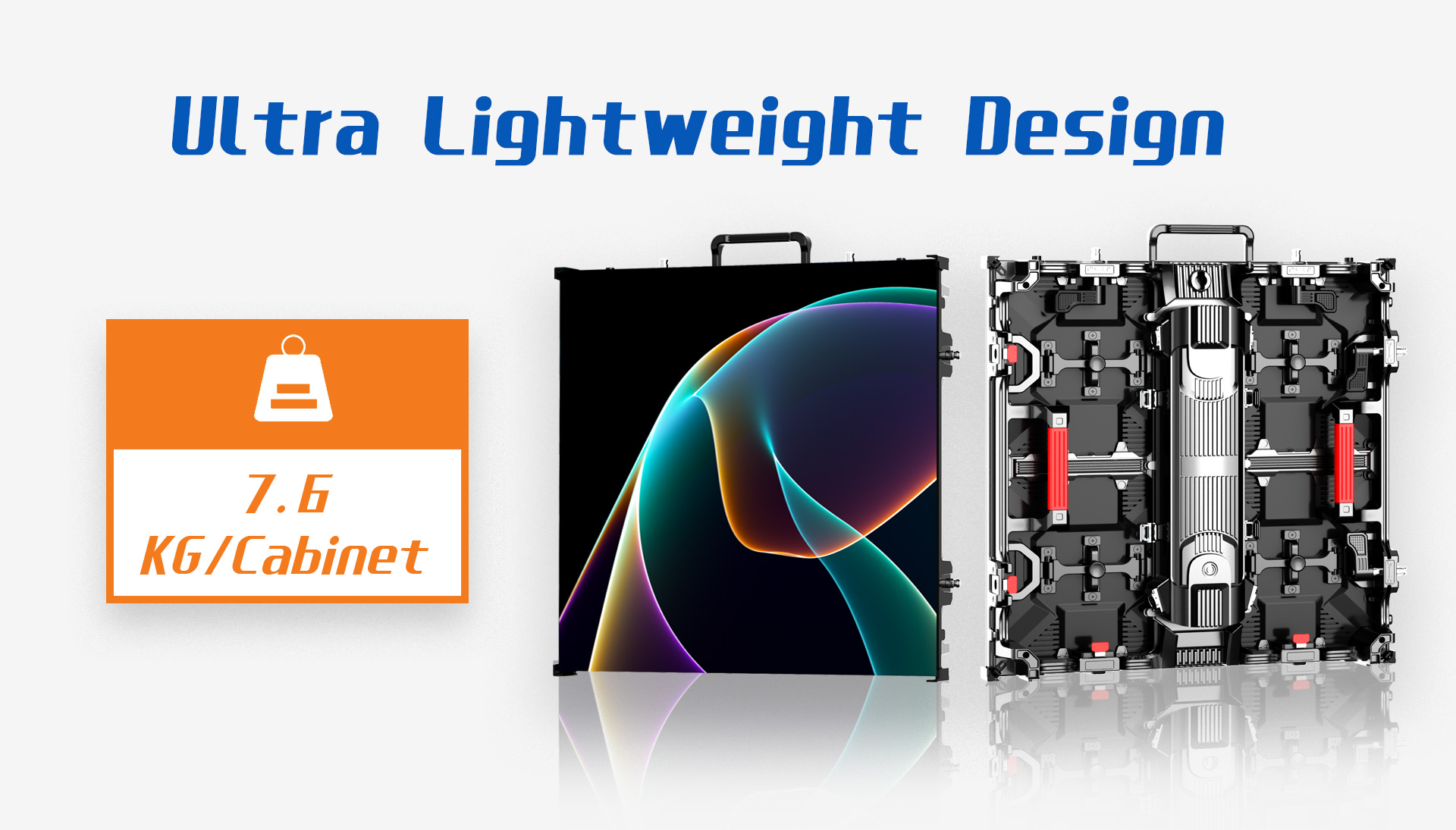

Ultra_Lightweight Design
Each cabinet weigh is only 7.6kg, single_person installafion and transportafion.

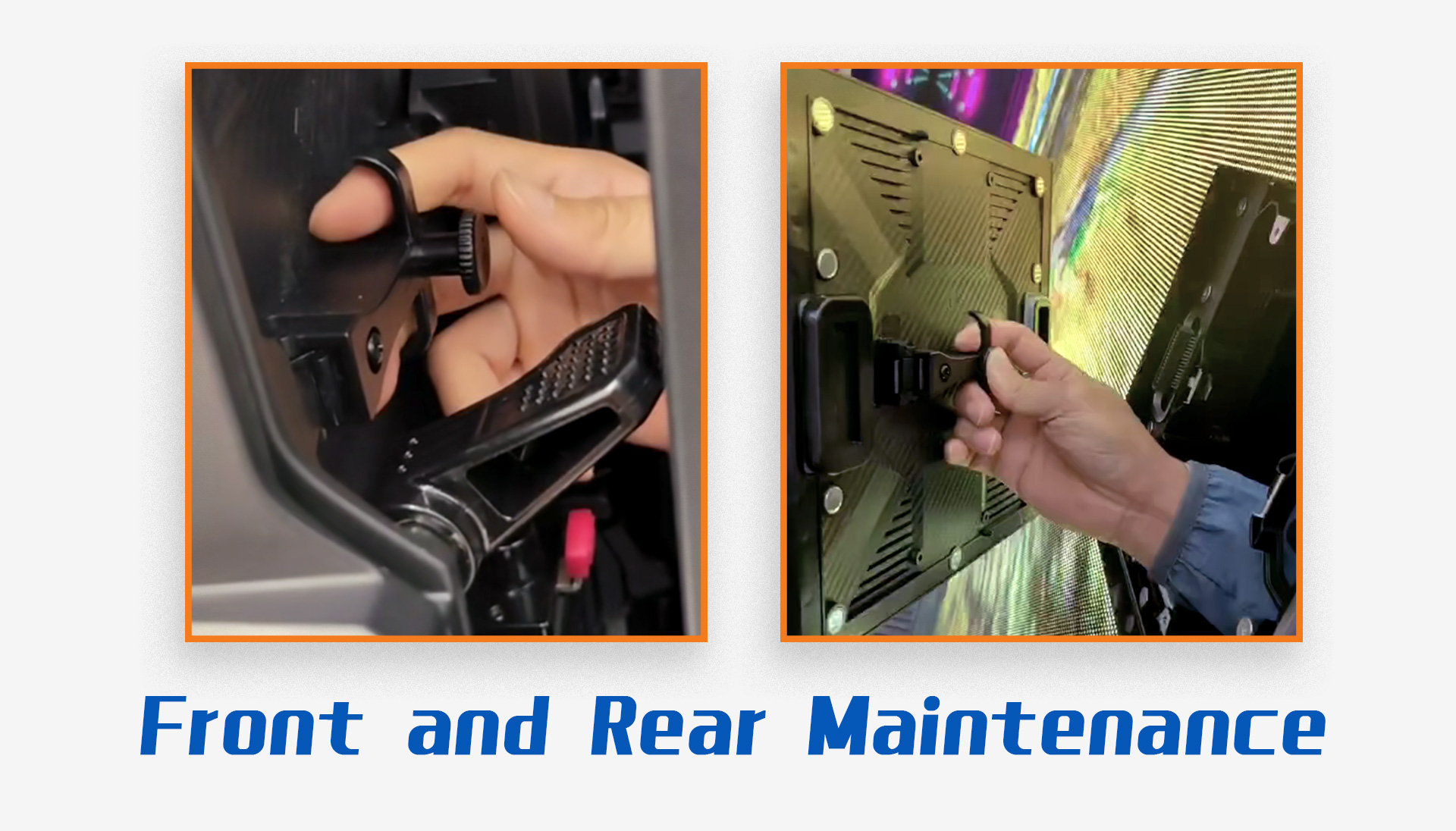

Front and Rear Maintenance
It design allows for front and rear maintenance of modules, receiving cards and the power box. Support the disassembly and maintenance of press-type modules

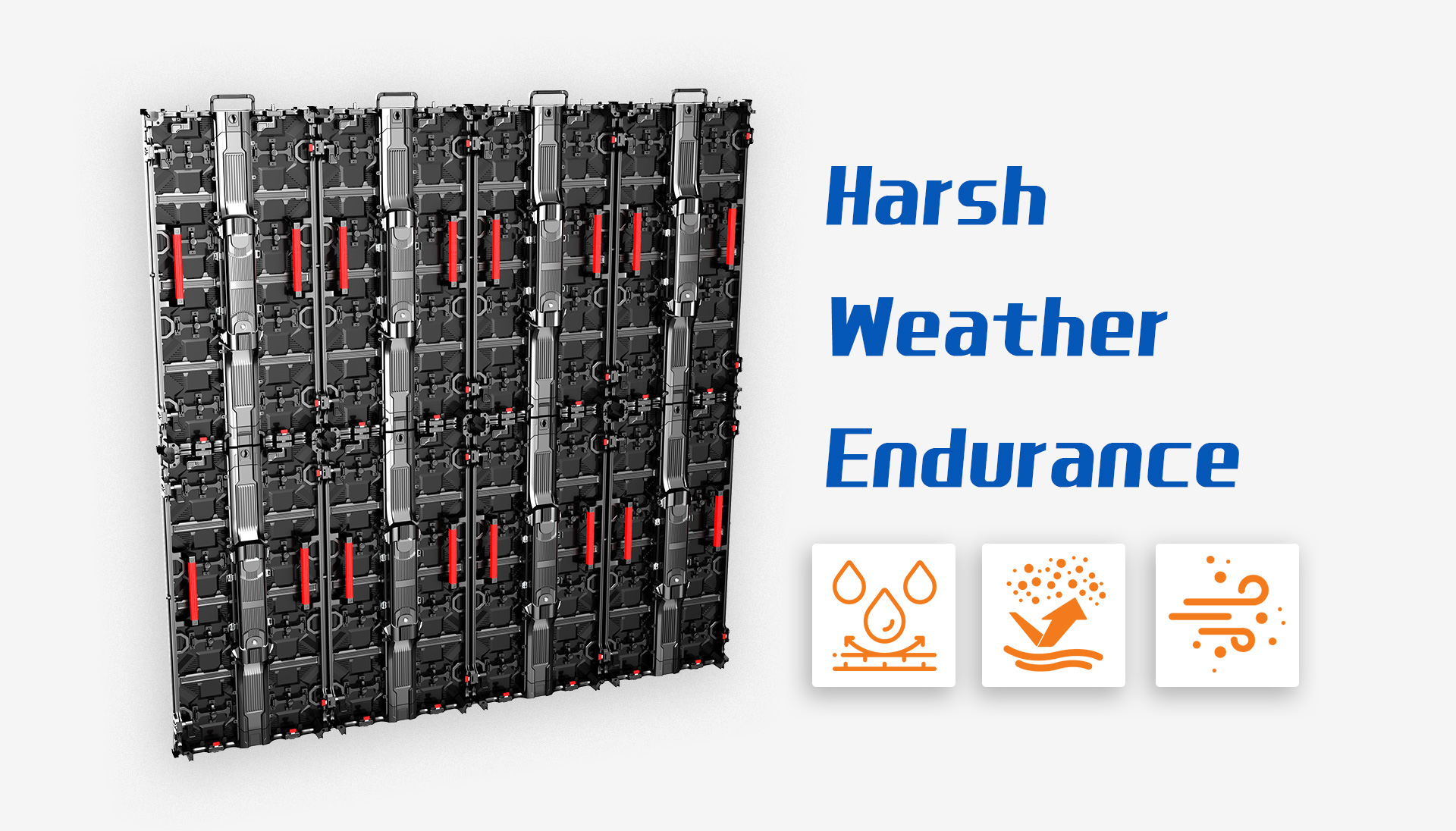

lmpeccably in all kinds of extreme weather
Typhoon Resistance; Storm Resistance; Humidity Resistance; High Temperature Resistance; Low Temperature Resistance; Salt Fog Resistance

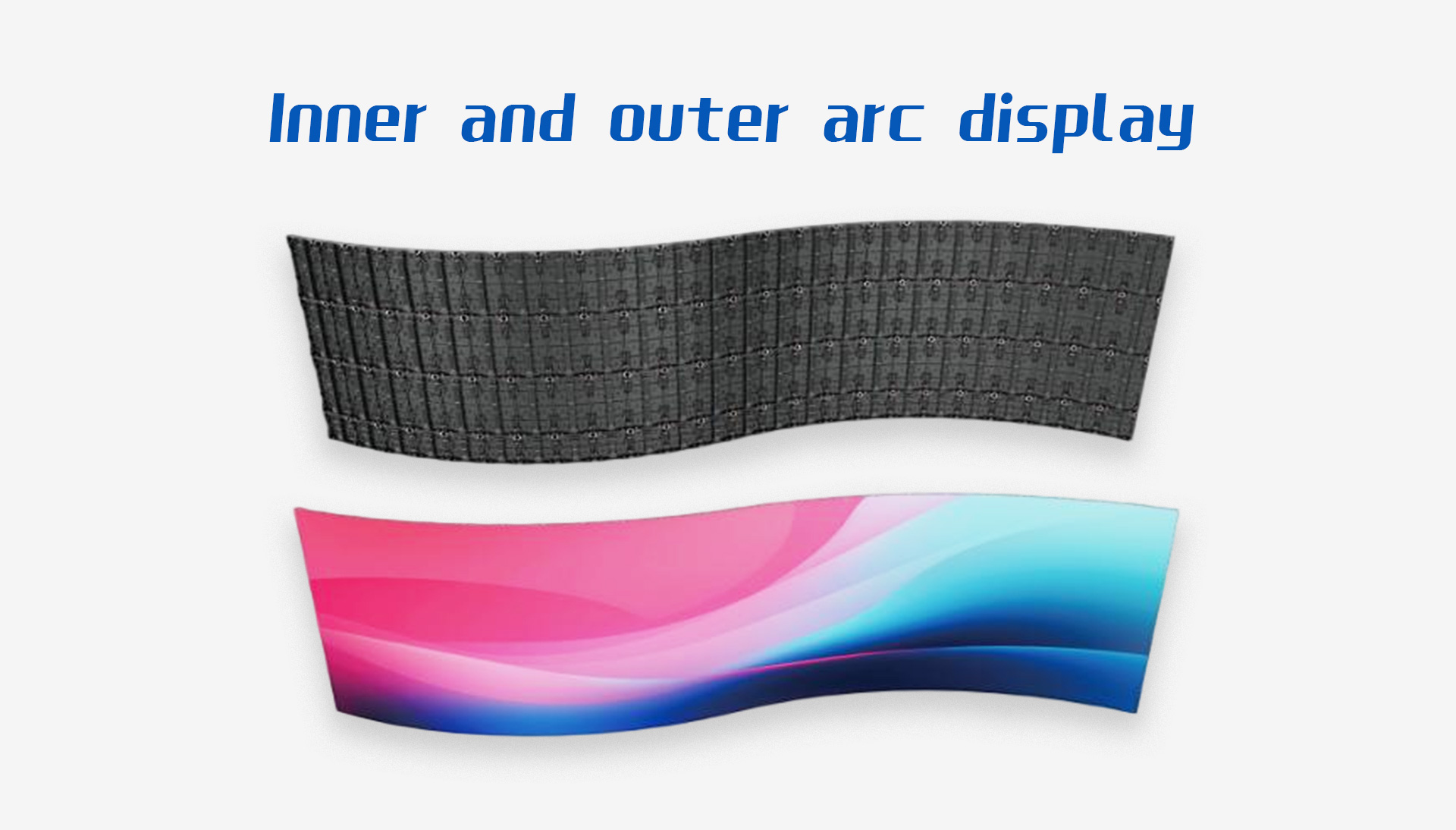

Inner and outer arc display
The curved version of the cabinet supports multi-angle splicing of inner and outer arcs, with an adjustable angle range of ±15°, making it convenient for customers to create a variety of stage shapes and highlight unique stage charm.
Product Specification
| Product Name | DSL-P2.6 | DSL-P2.9 | DSL-P3.9 | DSL-P4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Density | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ |
| Lamp Type | SMD1415 white | SMD1415 white | SMD1921 white | SMD1921 white |
| Module Size (W×H×D) | 250×250mm | |||
| Module Resolution | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Weight | 0.6KG | |||
| Cabinet Size (W×H×D) | 500×500×90mm / 500×1000×90mm | |||
| Cabinet Resolution (Pixel) | 192×192 / 192×384 | 168×168 / 168×336 | 128×128 / 128×256 | 104×104 / 104×208 |
| Cabinet Weight | 7.6KG / 15KG | |||
| Maintenance Methods | Front / Rear Maintenance | |||
| IP Rate | Front IP65 | |||
| Brightness | ≥4500cd/㎡ (support 5000cd/6000cd/customized) | |||
| Horizontal Viewing Angle | ≥140° | |||
| Vertical Viewing Angle | ≥120° | |||
| Color Temperature | 9000-10000K | |||
| Best Viewing Distance | 4m | 5m | 6m | 8m |
| Input Voltage | 100-260V | |||
| Working Voltage | 5V | |||
| Refresh Rate | 3840-7680Hz | |||
| Scan | 1/24S | 1/28S | 1/16S | 1/13S |
| Gray Scale | 12~16Bit | |||
| Interface Type | Hard Connection | |||
| Power Consumption Max. | 800W/㎡ | 800W/㎡ | 800W/㎡ | 1080W/㎡ |
| Average Power | 400W/㎡ | 400W/㎡ | 400W/㎡ | 540W/㎡ |
| Certification | CE, FCC | |||
