Product Features
Product Overview
Featuring a new modular design with low EMI, it reduces weight by 50% and increases installation efficiency by 50%. The carbon fiber composite frame makes it ultra-lightweight, ultra-thin, transparent, durable, and easy to maintain. Its unique design and craftsmanship prevent deformation of the display surface during long-term use, ensuring consistent flatness. It is mainly used in high-end stage, theater, and rental applications.
Multiple assembly structures

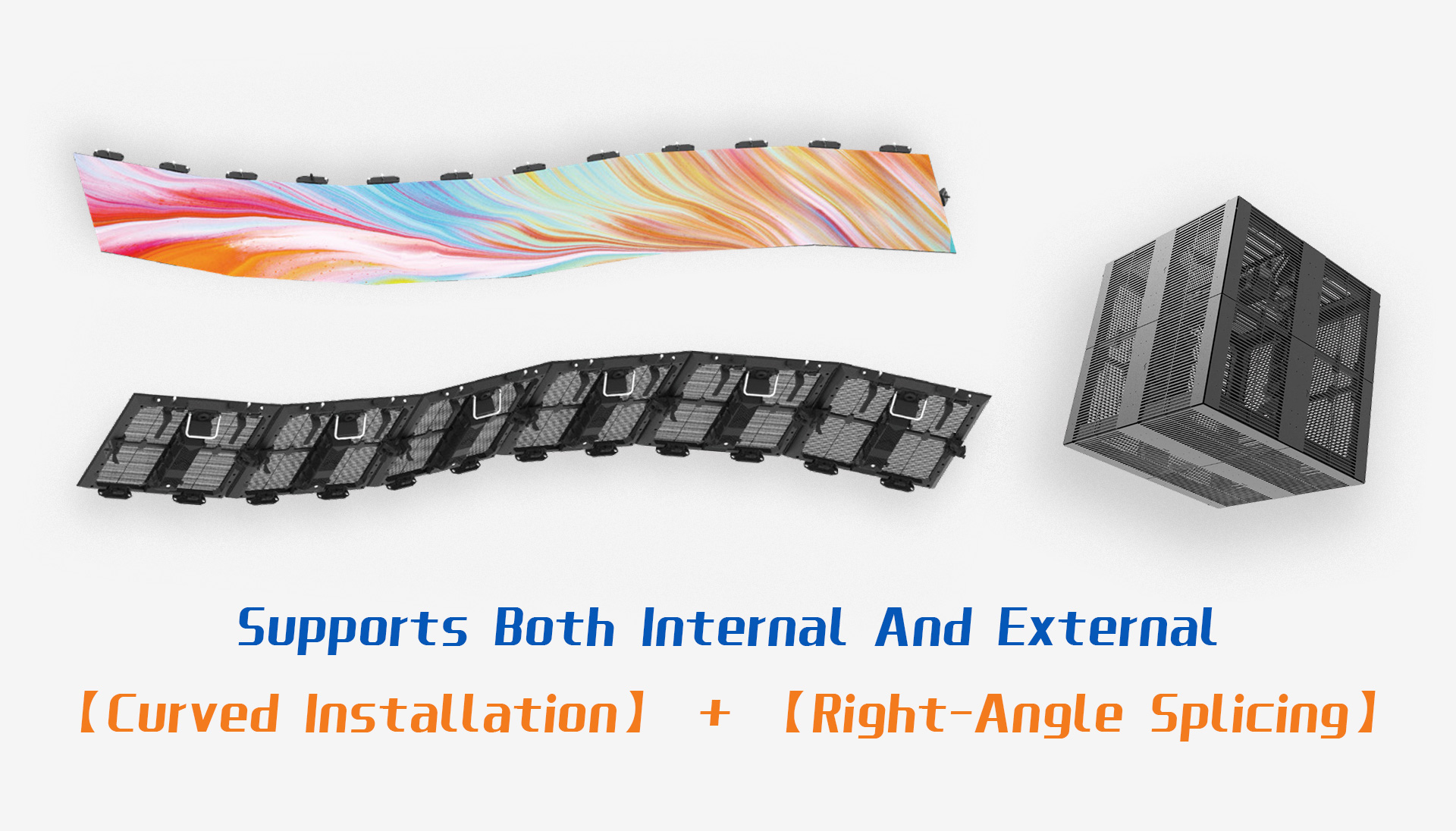

Rich screen-splicing functions allow for customized right-angle and curved screens, granting greater freedom in stage design and easily achieving unique creative shapes.Six LED display units assembled at right angles create a "digital cube."
Light, Thin, and Transparent Structural Design

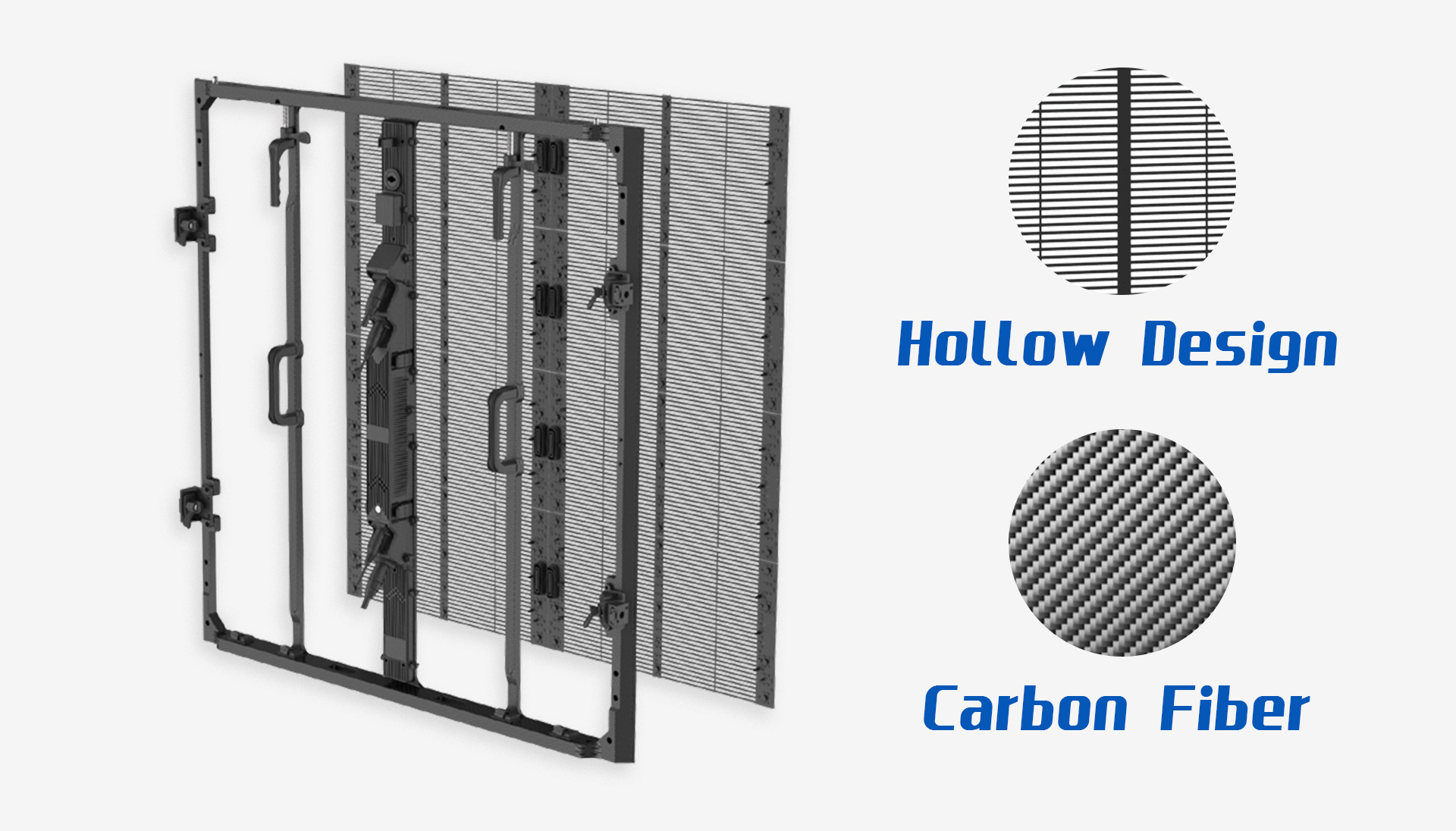

The main frame features an ultra-light pure carbon fiber frame combined with a hollow creative design, significantly reducing weight while enhancing transparency. It offers high tensile strength and an aesthetically pleasing structure.
High Protection

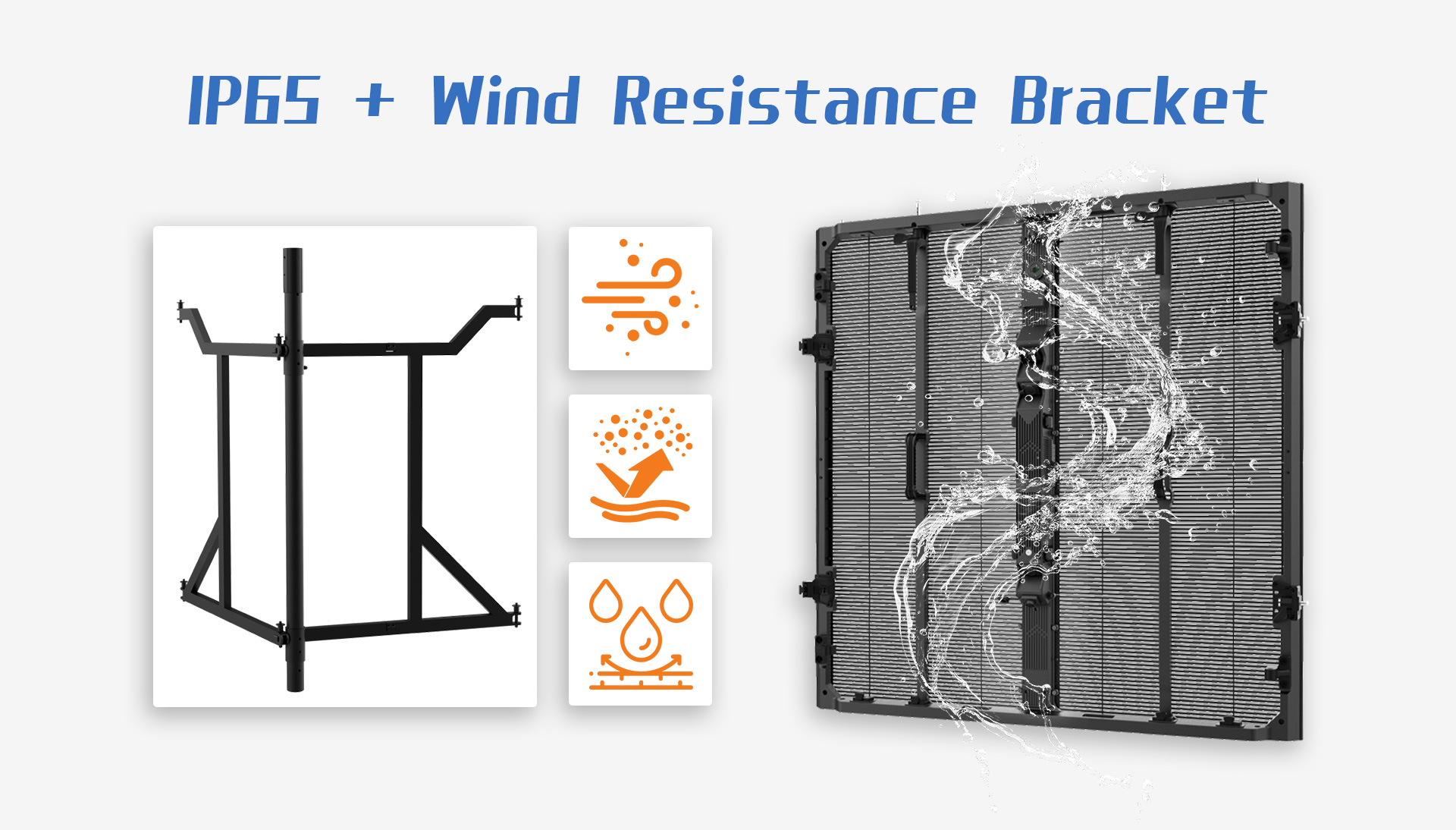

With an IP65 protection rating, it is dustproof, waterproof, and moisture-proof, resistant to wind and rain, and suitable for a wide range of environments.When used as a wind resistance bracket, it expands to form a triangle with the support rod, enhancing the display's ability to withstand environmental wind forces.
Case Showcase
Our Successful Projects

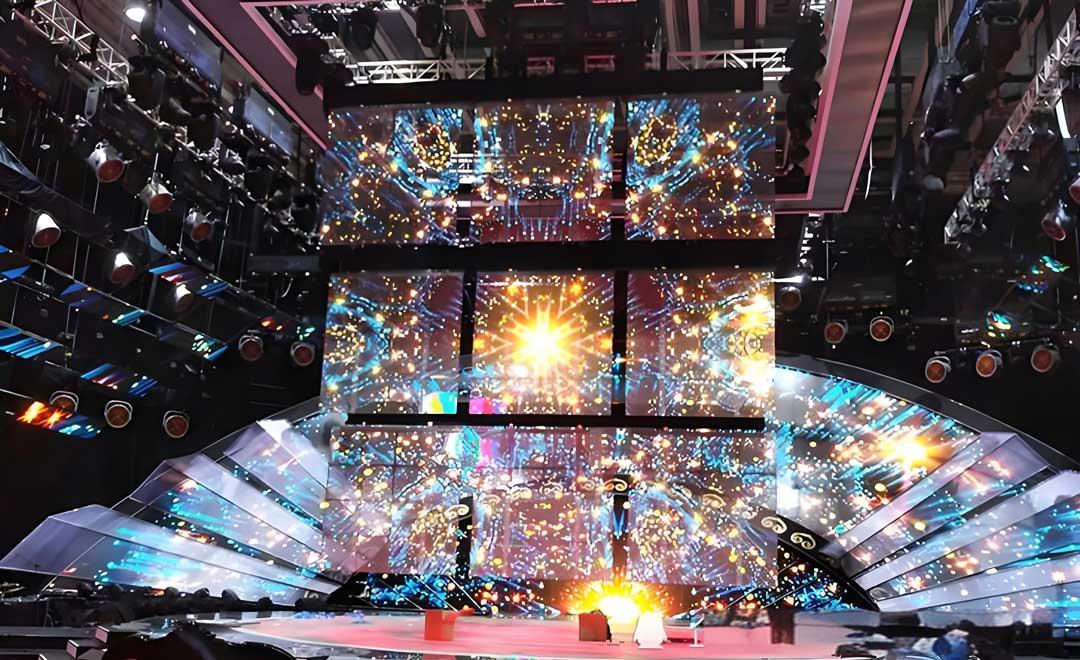

Gala Performance, China

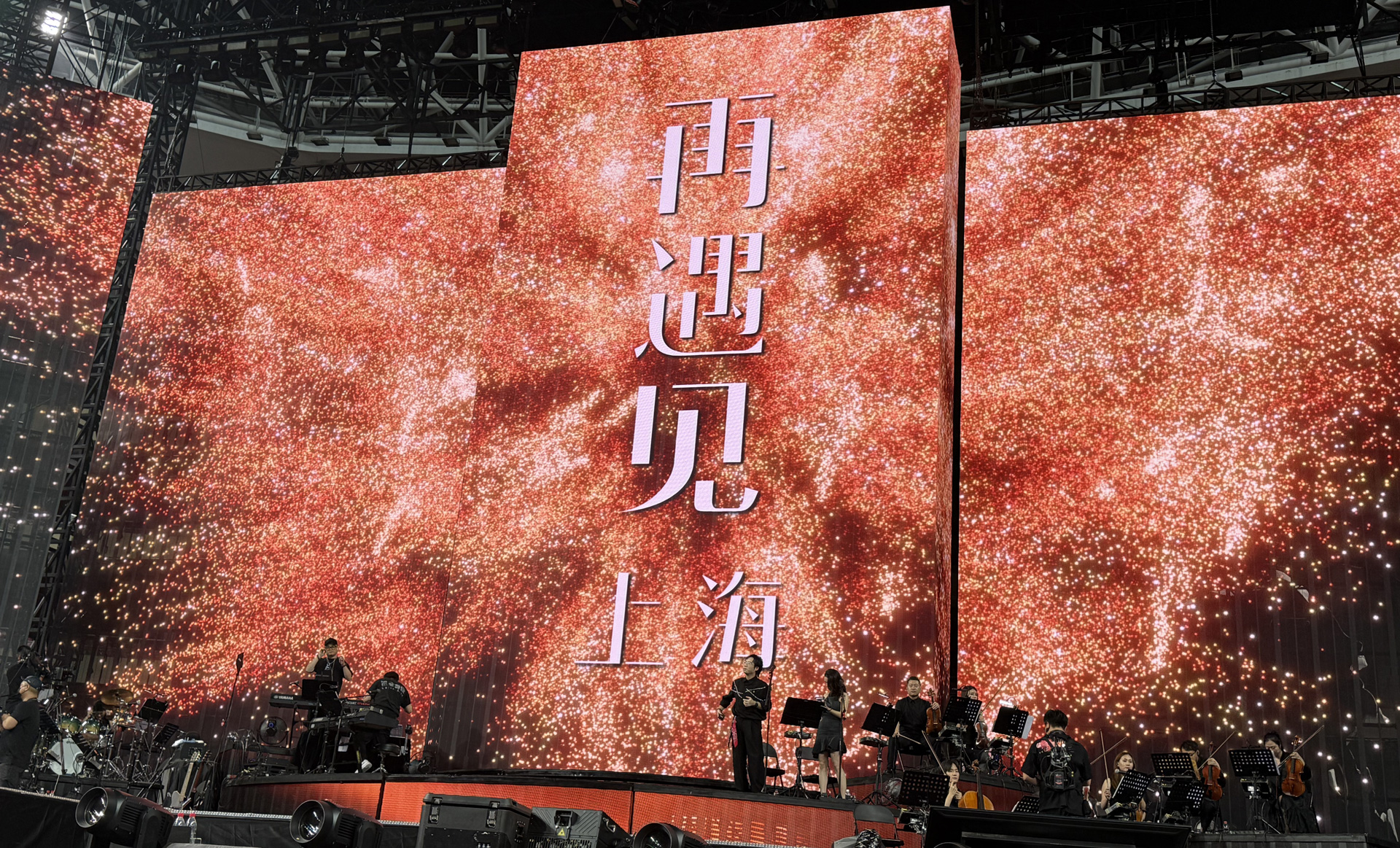

Concert, Shanghai, China

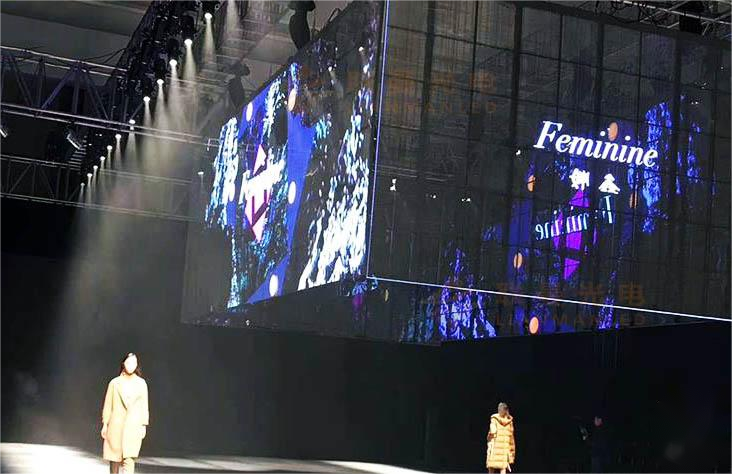

Fashion Show, Guangzhou, China

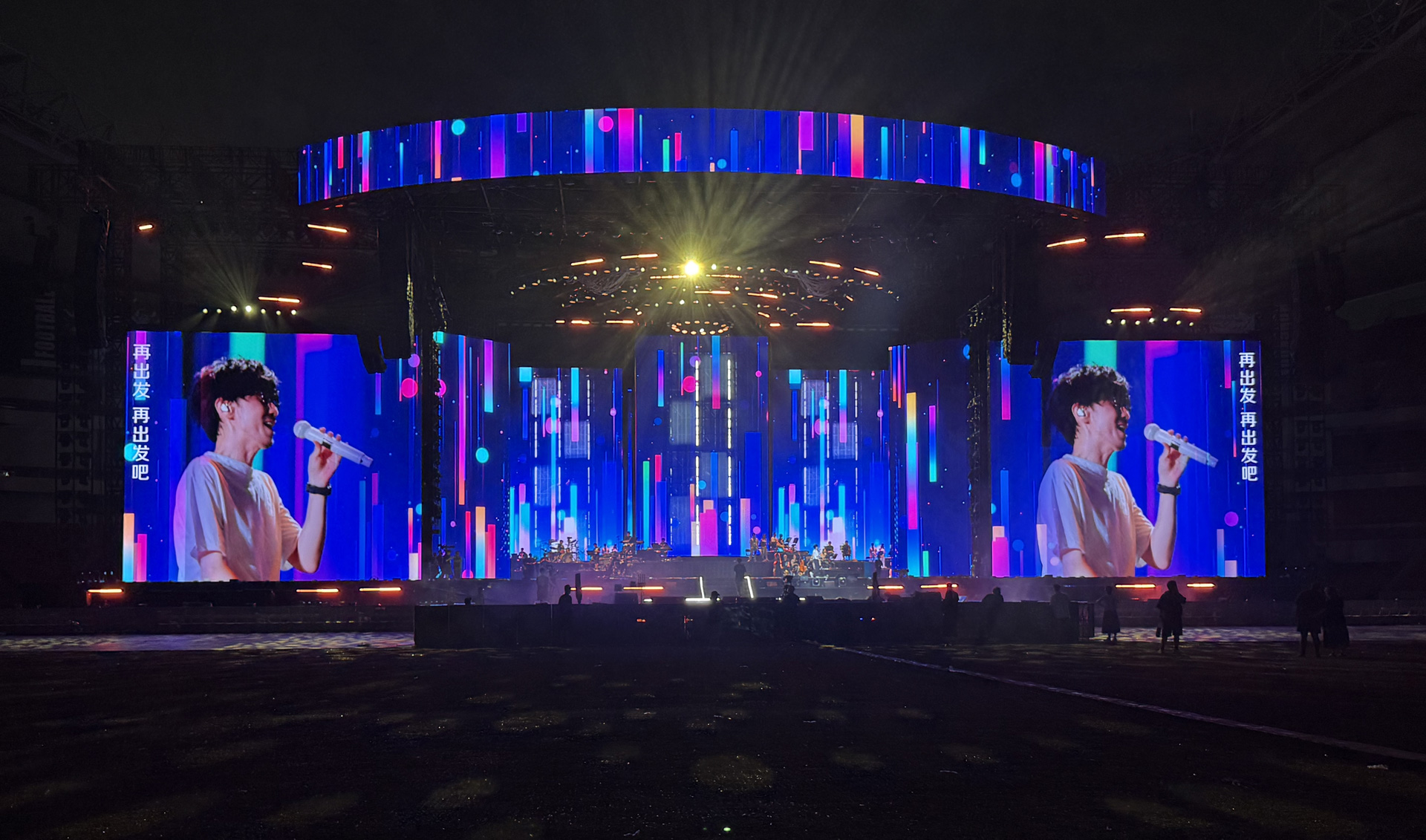

Concert, Shanghai, China
Product Specification
| Product Name | P3.9-7.8 | P5.9 | P7.8 | ||||||||||
| Pixel Pitch(mm) | X:3.9mm Y:7.8mm | 5.9mm | 7.8mm | ||||||||||
| Lamp Type | SMD1921 | ||||||||||||
| Module Size(mm) | 500x250mm | ||||||||||||
| Module Resolution(dots) | 128*32dot | 84*42dot | 64*32dot | ||||||||||

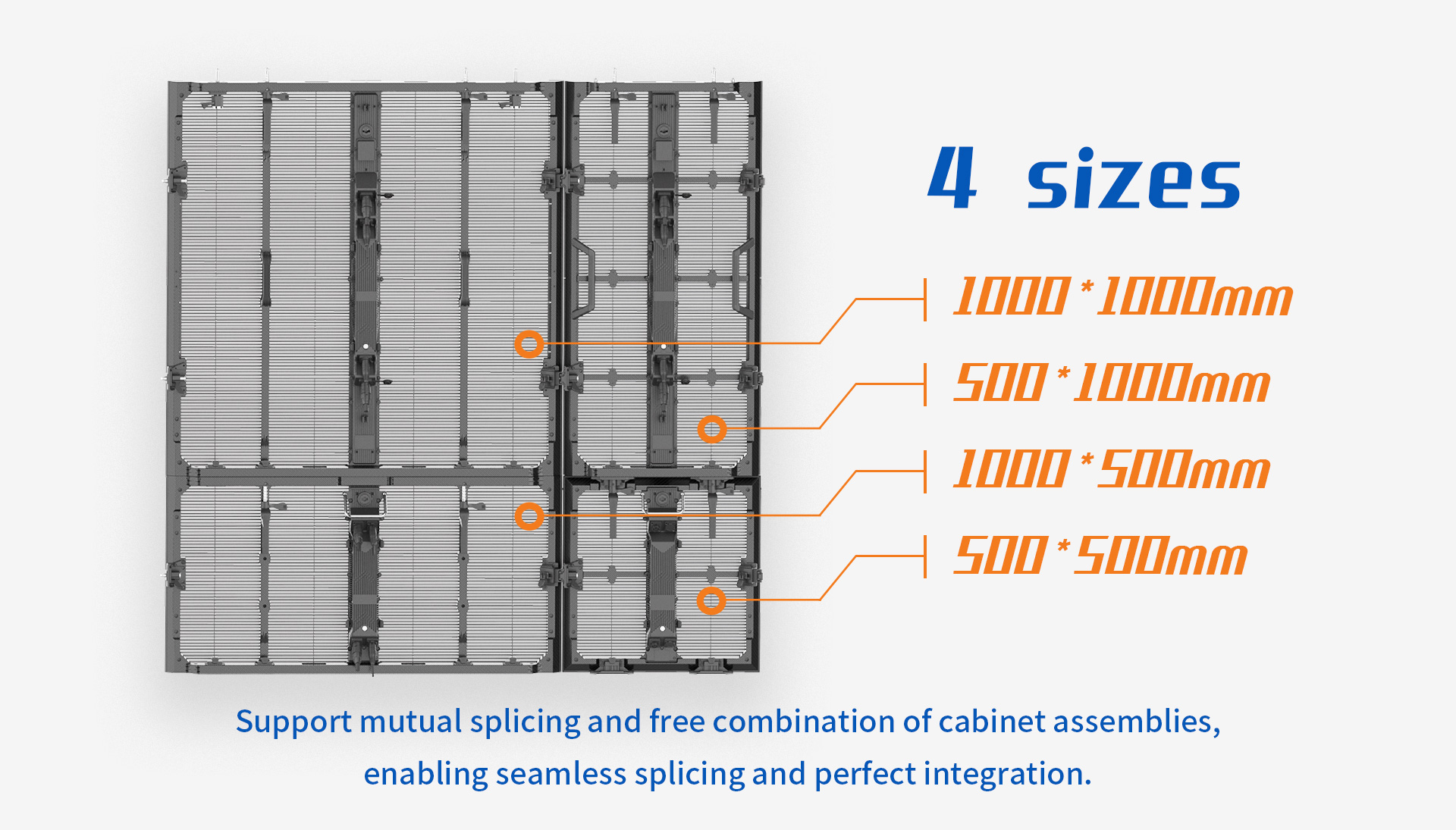

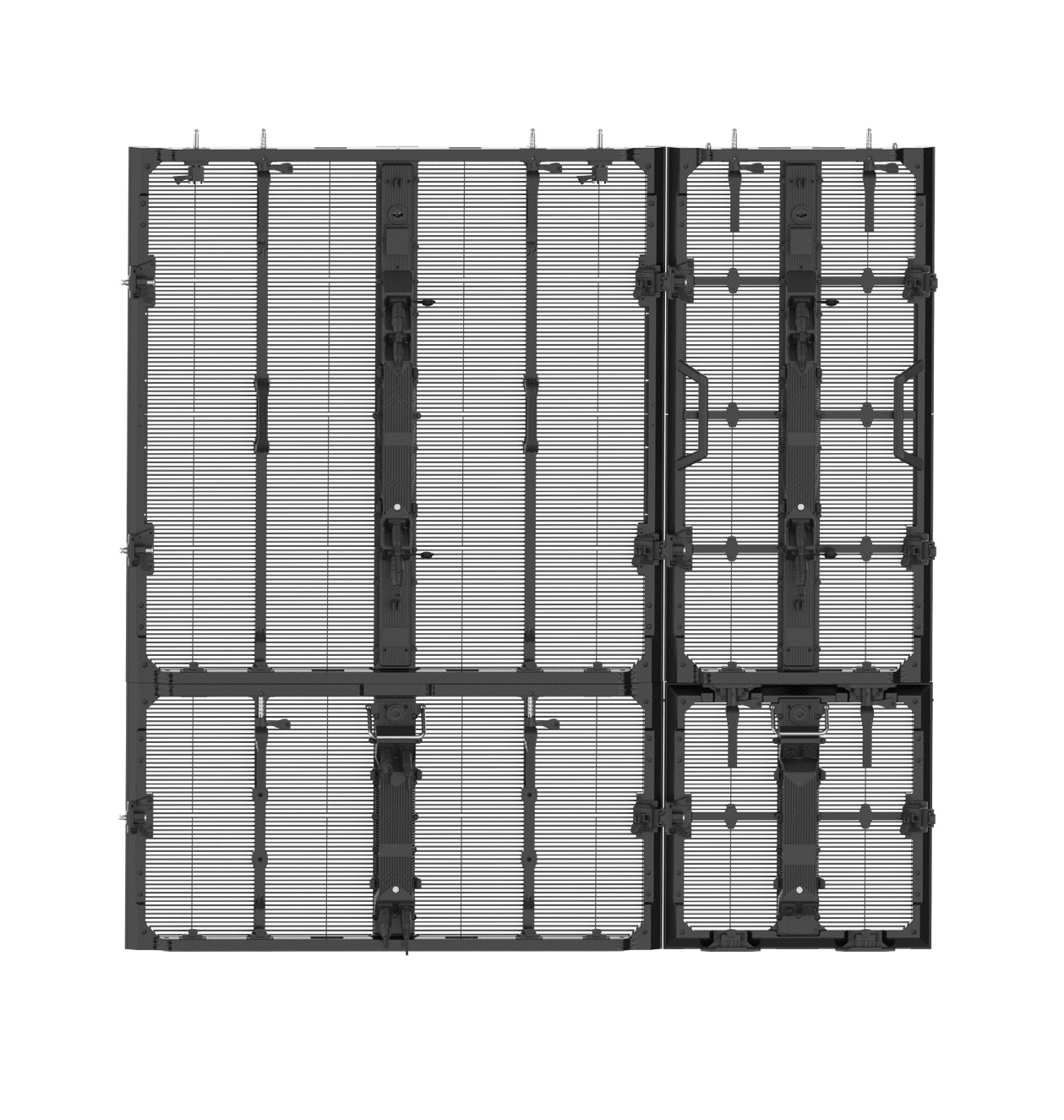

| Cabinet Size(mm) | 1000x1000 | 1000x500 | 500x1000 | 500x500 | 1000x1000 | 1000x500 | 500x1000 | 500x500 | 1000x1000 | 1000x500 | 500x1000 | 500x500 | |
| Cabinet Resolution(dots) | 256*128 | 256x64 | 128x128 | 128x64 | 168x168 | 168x84 | 84x168 | 84x84 | 128x128 | 128x64 | 64x128 | 64x64 | |
| Cabinet material | Carbon fiber | ||||||||||||
| Cabinet Weight(kg) | 10.5 | 6.3 | 6.9 | 4.6 | In the design process | 10.5 | 6.5 | 6.7 | 4.5 | ||||
| Weight of the cabinet + wind resistance frame (Kg) ± 5% | 15.5 | / | / | / | 15 | / | / | / | 15 | / | / | / | |
| Refres(Hz) | 7680 | ||||||||||||
| Brightness(cd/m²) | white lamp:≤4500, black lamp:≤2000 | white lamp:≤4500, black lamp:≤1600 | white lamp:≤1500, black lamp:≤4500 | ||||||||||
| Gray Scale(Bit) | 16 | ||||||||||||
| Scan(S) | 1/8 | 1/7 | 1/8 | ||||||||||
| Max. Power Consumption | 320W/㎡ | ||||||||||||
| Ave. Power Consumption | 160W/㎡ | ||||||||||||
| Viewing angle | ≥160° | ||||||||||||
| IP Rate | IP65 | ||||||||||||
| Environment | indoor/outdoor | ||||||||||||
| Arc-shaped lock angle | 0°, ±2.5°, ±5°, ±7.5°, ±10° | ||||||||||||
| Working voltage(V) | AC100-240V | ||||||||||||
| Maximum lifting capacity(m) | 20 | ||||||||||||
| Maximum seating capacity(m) | 20 | ||||||||||||
| Operating Temperature/humidity | -20℃ ~ +45℃ / 10% ~ 90%RH | ||||||||||||
| Storage temperature/humidity | -40℃ ~ +60℃ / 10% ~ 90%RH | ||||||||||||
| Life Span(H) | ≥100,000 | ||||||||||||
