Product Features

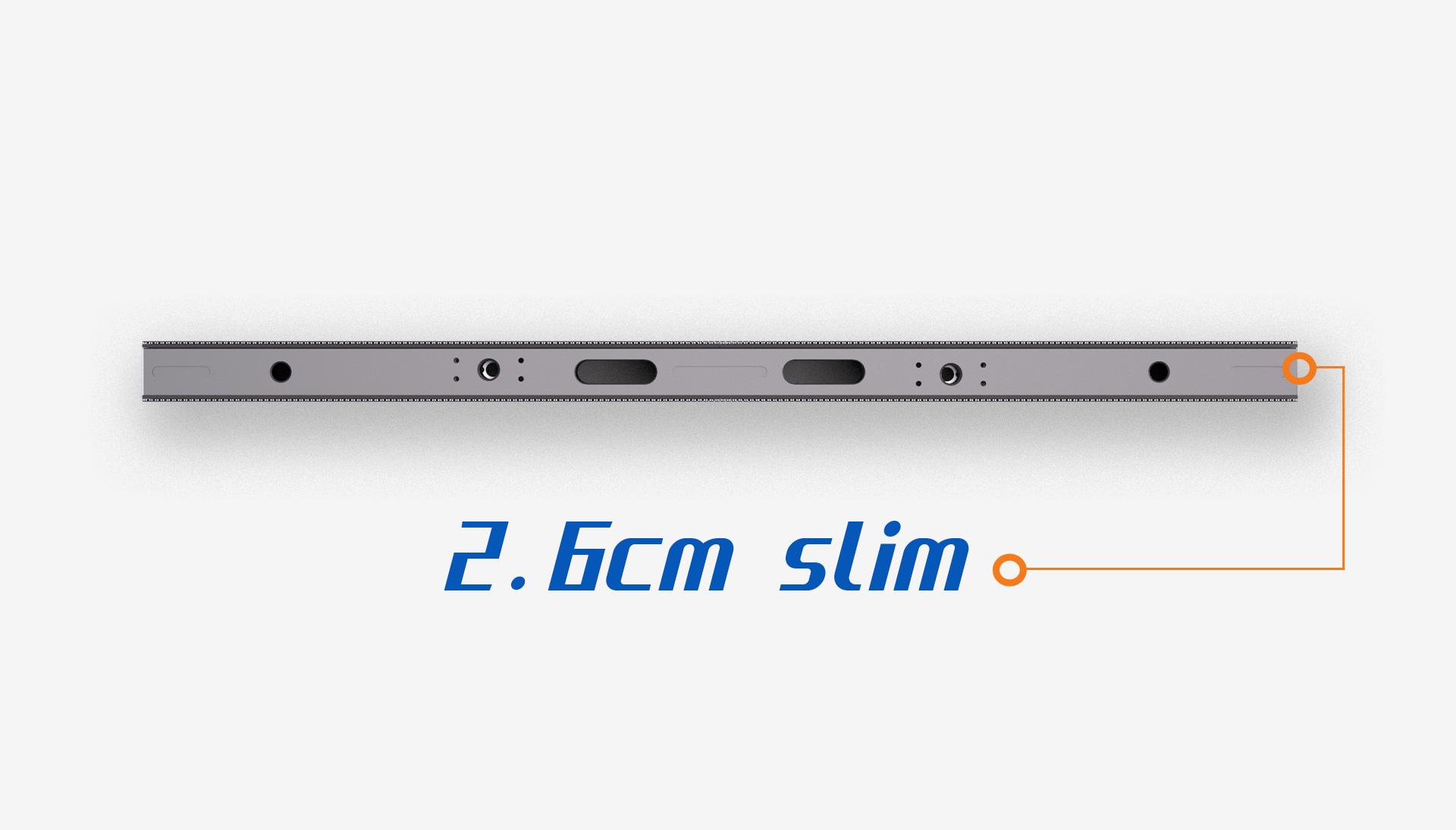

Ultra-Slim Design: Just 2.6cm Thick
With an ultra-thin profile of only 2.6 centimeters, this LED display smashes traditional thickness limits. Its sleek, compact build not only saves precious installation space but also brings a minimalist, high-end visual appeal.

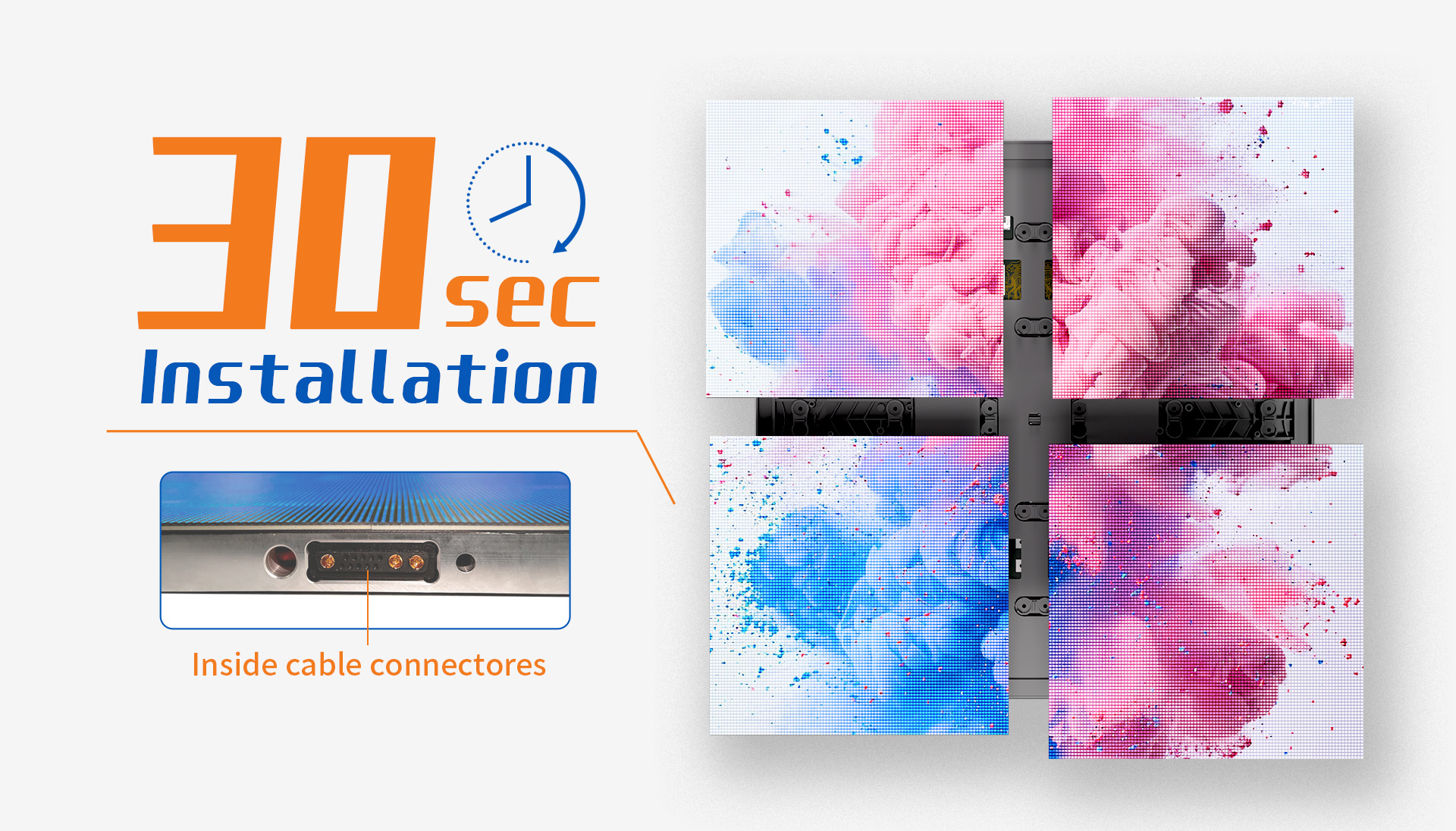

Rapid 30-Second Installation + Built-in Wireless Chassis
This LED display enables ultra-fast 30-second setup, with a wireless chassis integrated directly into the display unit itself (no external base or separate case). No power cables or network wires required—drastically reducing deployment hassle for a seamless, efficient experience.

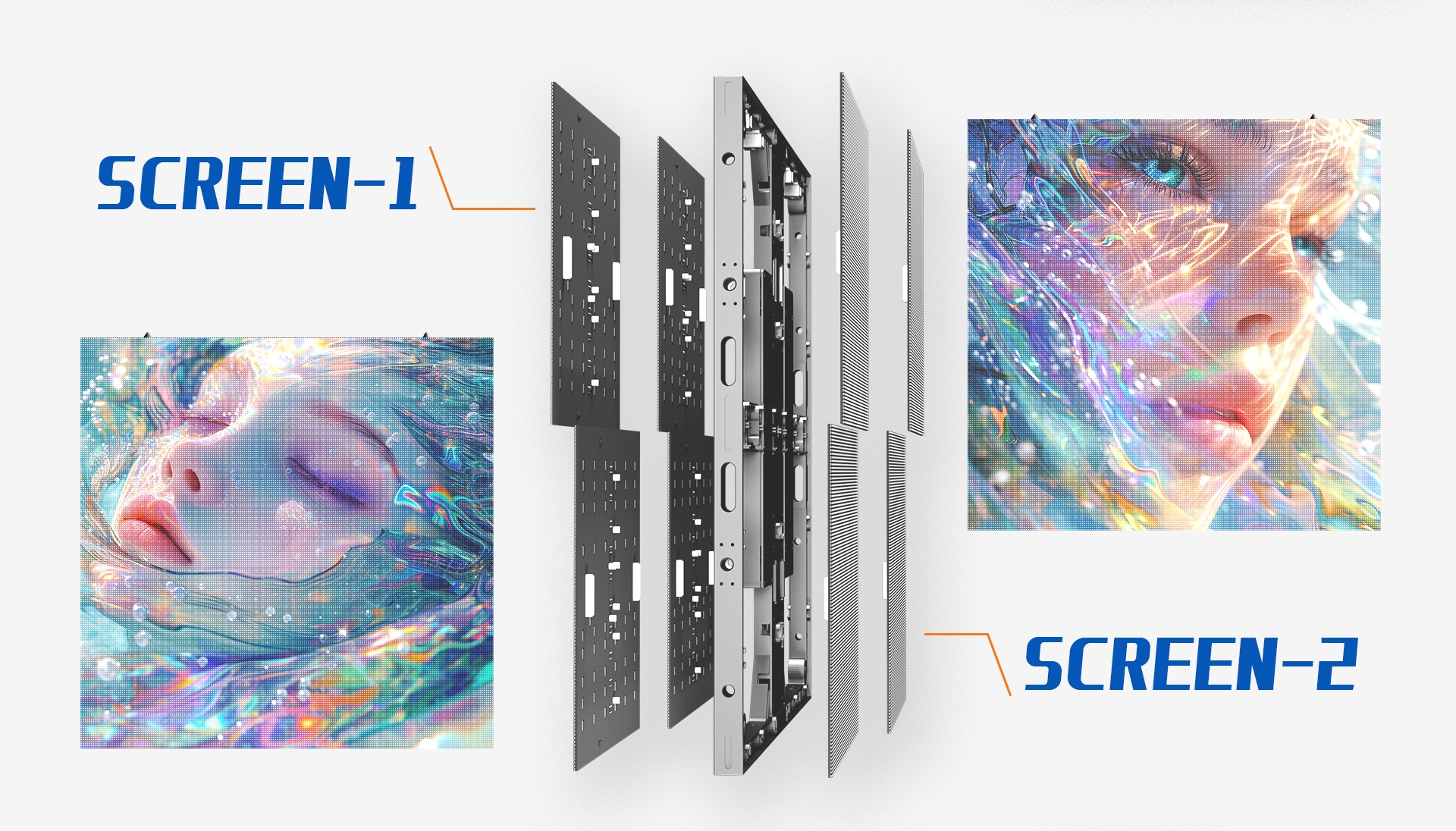

Double-Sided Display: Screens on Both Sides
This LED display features double-sided screens, with clear display effects on both the front and back. It maximizes visual coverage, allowing audiences from different directions to get excellent viewing experiences.

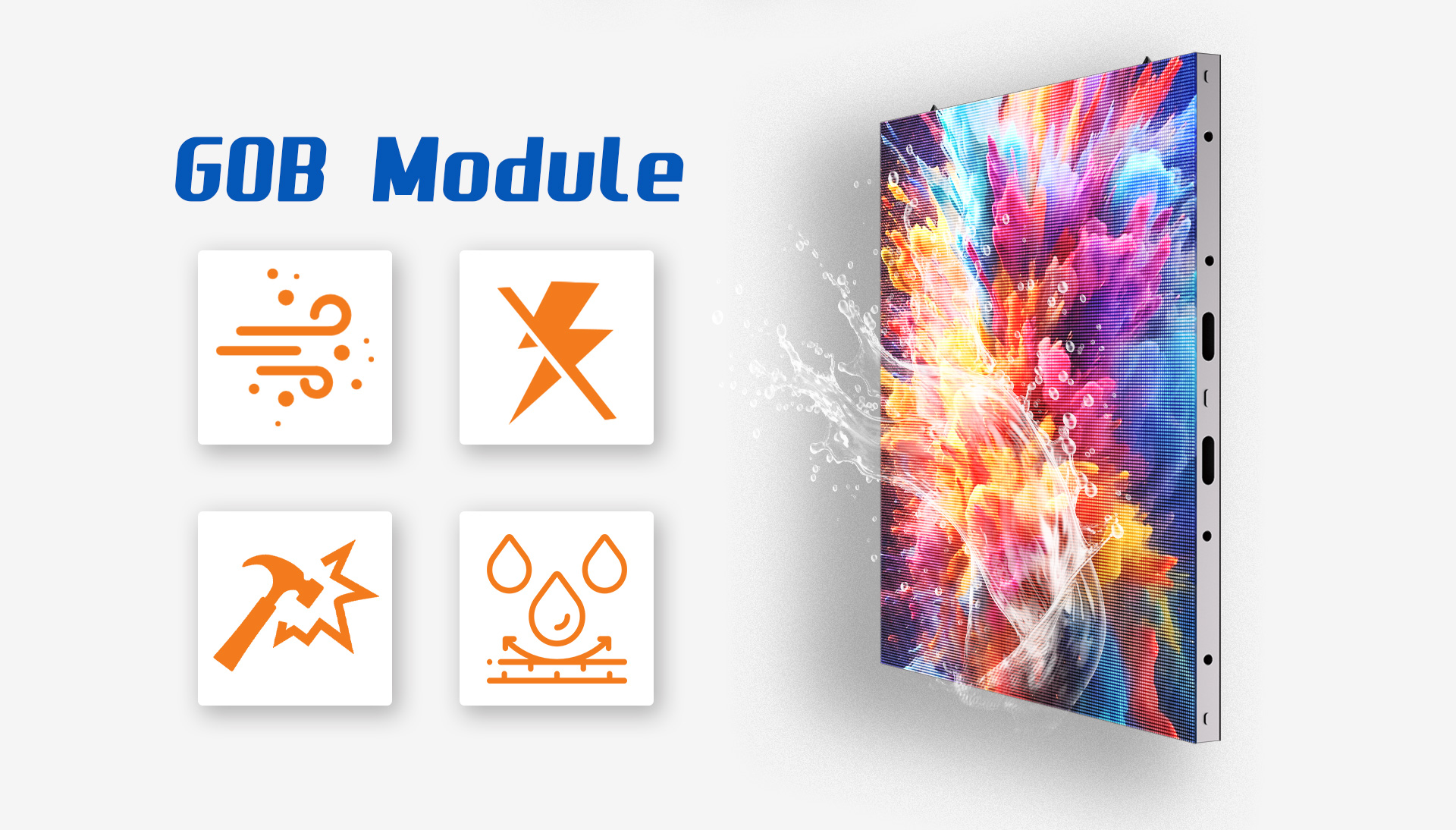

GOB Module Technology: Enhanced Protection and Stability
Equipped with advanced GOB (Glue on Board) modules, this LED display boasts superior dustproof, waterproof and anti-collision performance, ensuring reliable operation in various environments.

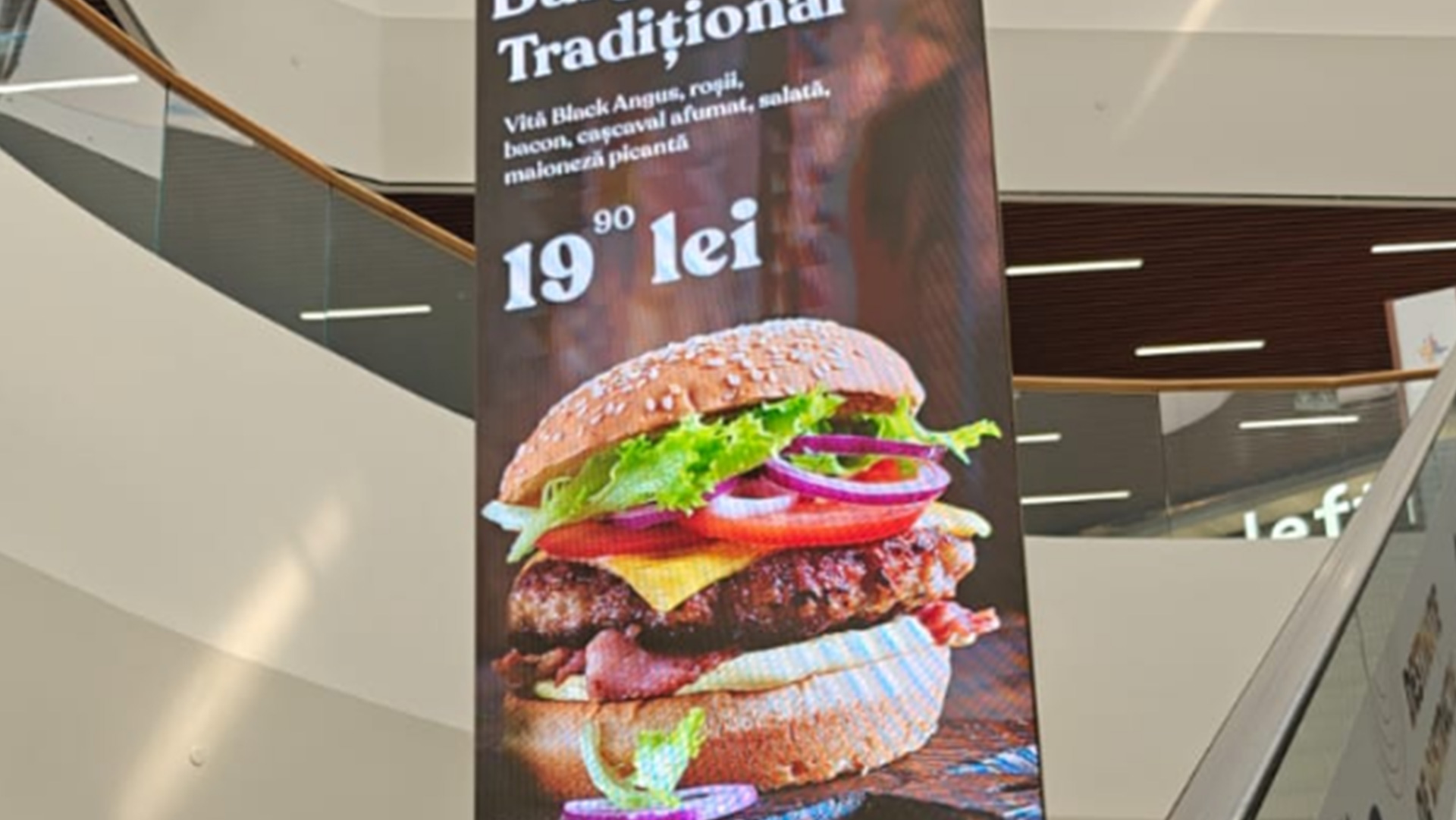

Case Showcase
Our Successful Projects

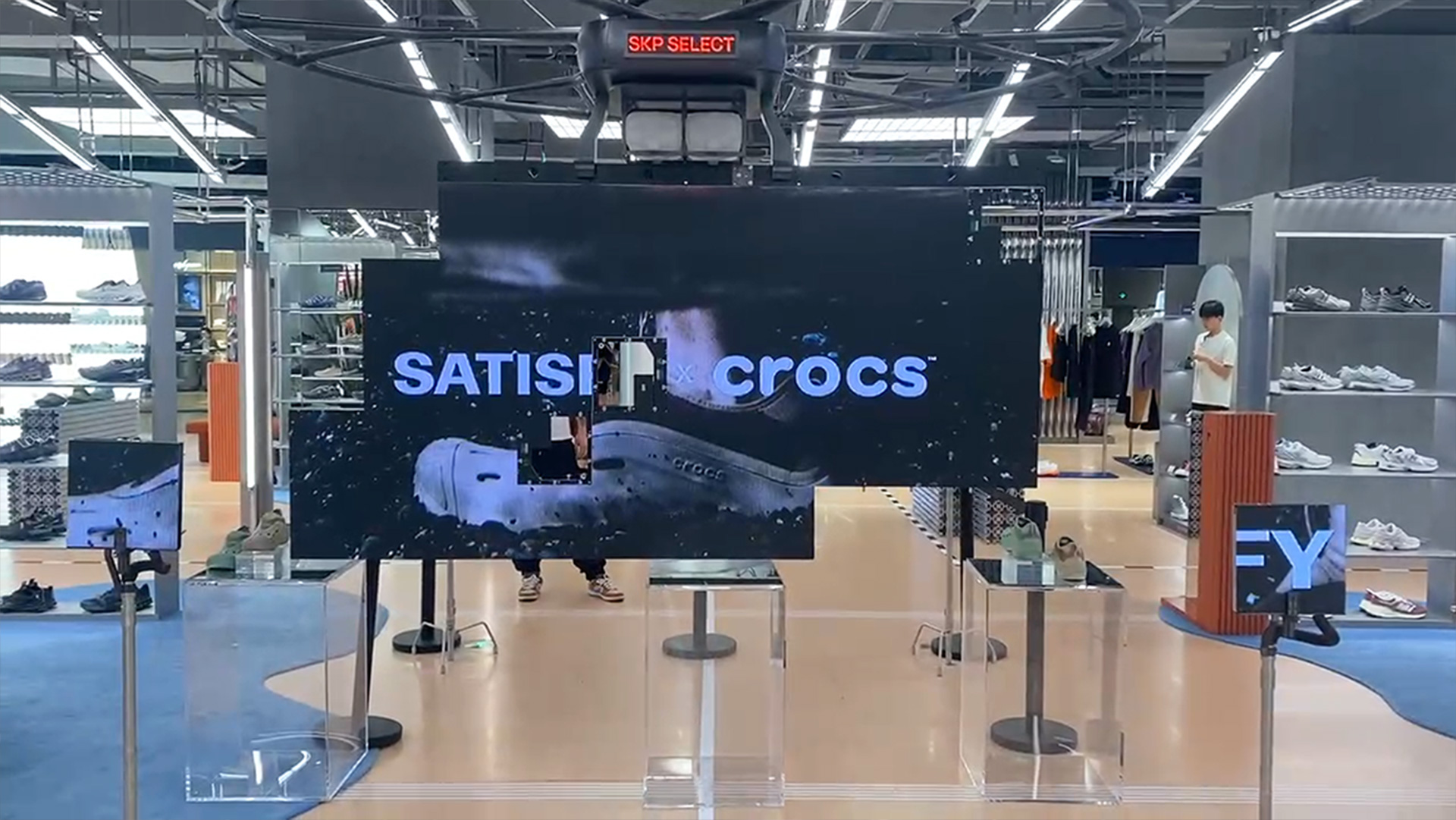

SKP, Wuhan City, Hubei Province, China

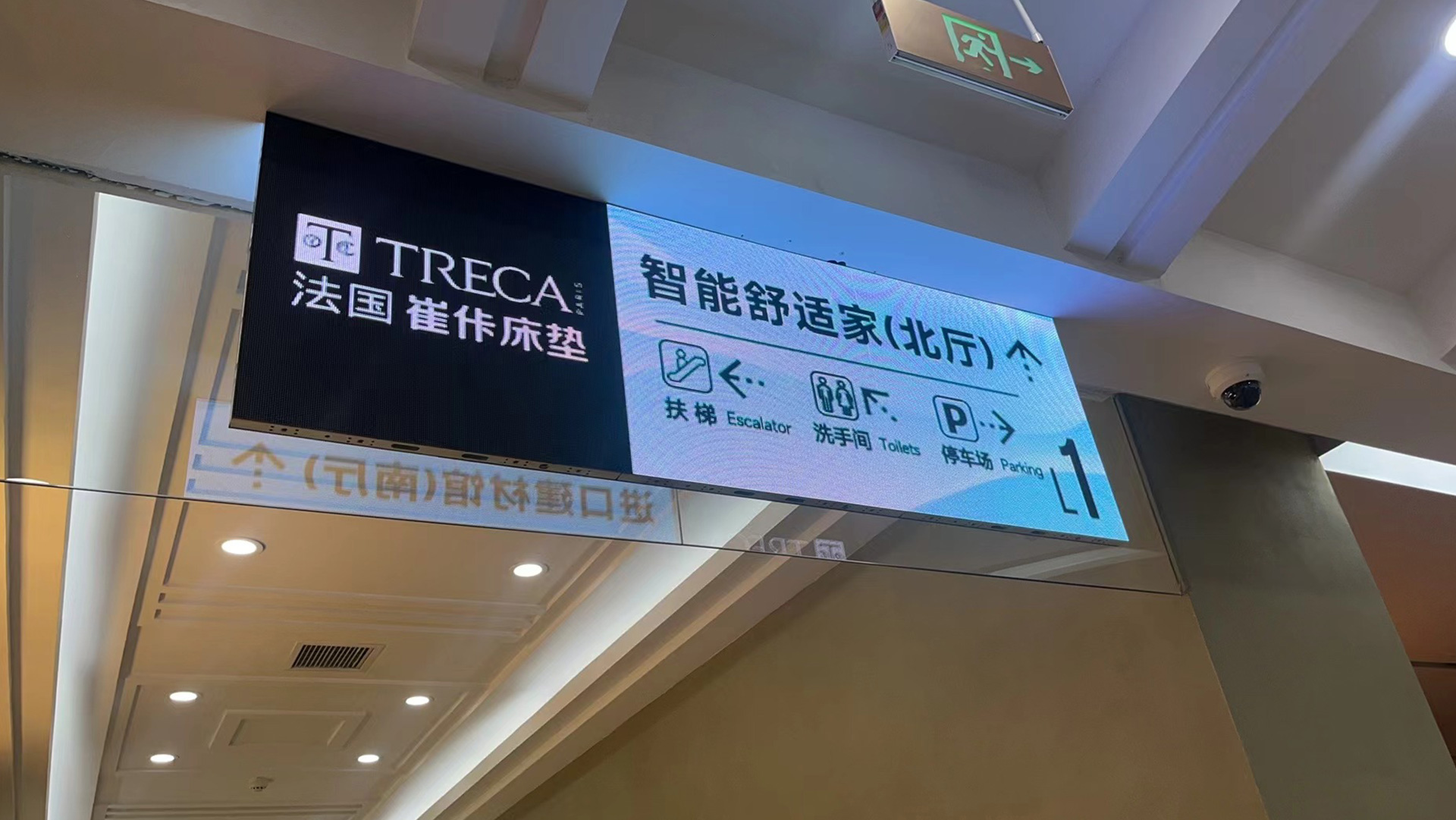

Easyhome, China

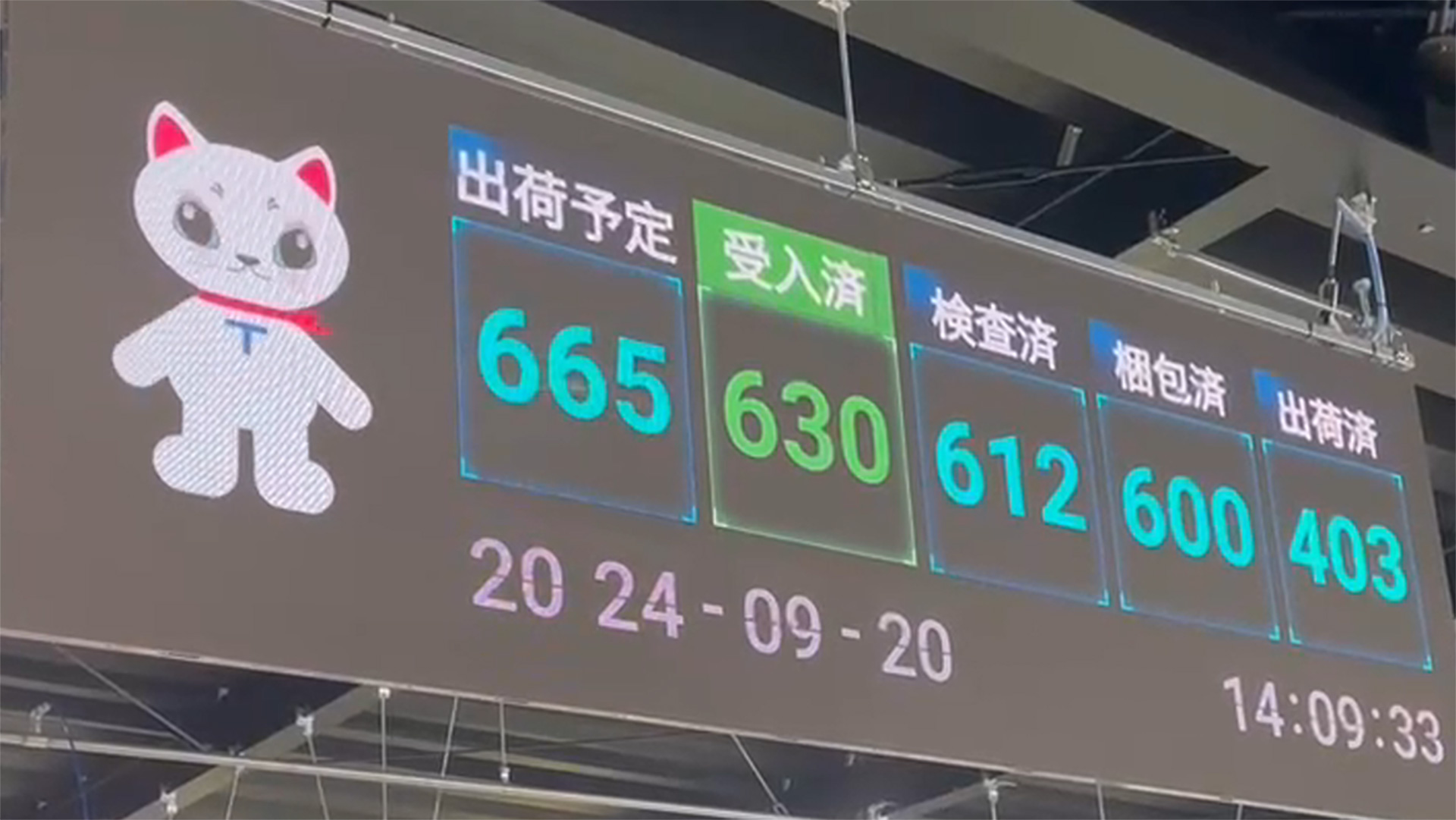

Logistics, Kyoto, Japan
GOB Protected Display
Product Specification
| Item | INDOOR | |||
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm | 3.91mm |
| LED Type | SMD1212（GOB optional） | SMD1515（GOB optional） | SMD1515（GOB optional） | SMD2020（GOB optional） |
| Pixel Density | 409600Dots/㎡ | 262144Dots/㎡ | 147456Dots/㎡ | 65025Dots/㎡ |
| Module Size (WxH) | 250x250mm | |||
| Module Resolution | 160x160Dots | 128x128Dots | 96x96Dots | 64x64Dots |
| Module Weight | 0.23Kg | 0.23Kg | 0.23Kg | 0.19Kg |
| Cabinet Size (WxHxT) | 500x500x26mm | |||
| Cabinet Resolution | 320×320Dots | 256×256Dots | 192×192Dots | 128×128Dots |
| Cabinet Material | Die-cast aluminum | |||
| Cabinet Weight | 4.47Kg | 4.5Kg | 4.8Kg | 4.3Kg |
| Input Voltage (DC) | 4.5-5V | |||
| Maximum Current | 6A | |||
| Frame Rate | 60Hz | |||
| Brightness | The standard brightness is 800cd/㎡, and the high-end brightness is 2000-3000cd㎡ | |||
| Contrast | 5000:1 | |||
| Grey Level | 12-16bit | |||
| Refresh Rate | 3840Hz | |||
| Scan Ratio | 1/40 | 1/32 | 1/32 | 1/16 |
| AC Operating Voltage | 100~240V | |||
| Power Consumption (Max./Avg.) | 820/290W/m² | 680/280W/m² | 740/260W/m² | 620/230W/m² |
| IP Rating (Front/Rear) | IP30 | |||
| Installation Support | Bracket、Wall Mount | |||
| Maintenance Method | Front/rear maintenance | |||
